Opening the CAME garage door via smartphone

Purchase this article for $5.00

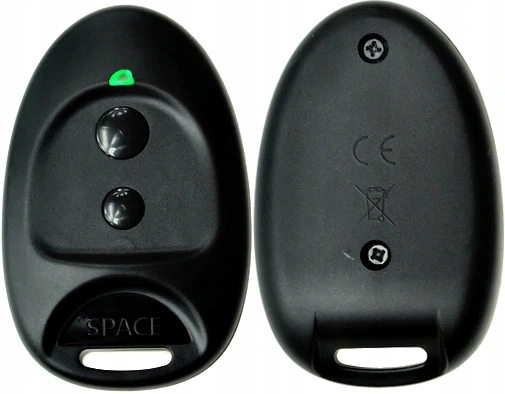

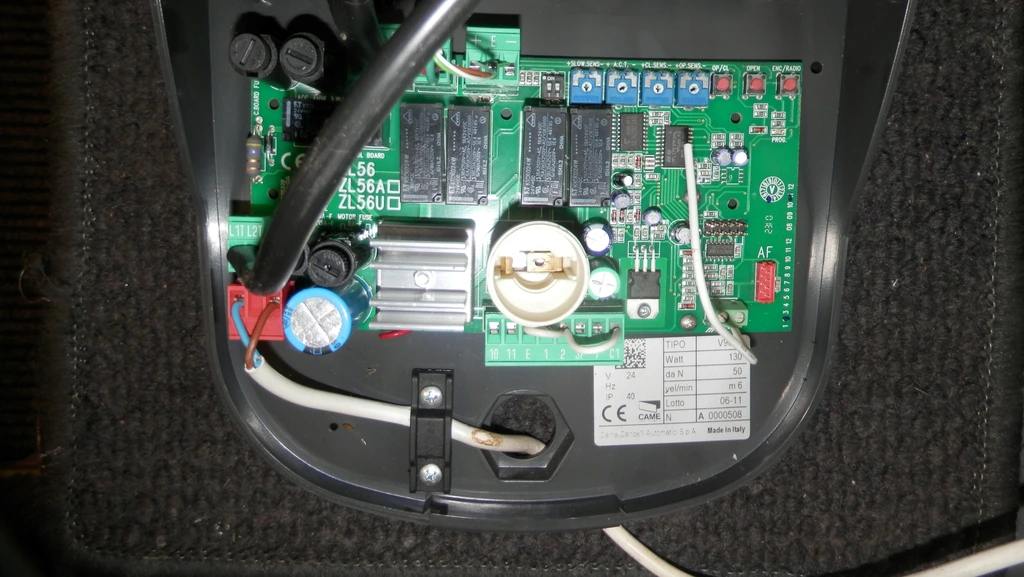

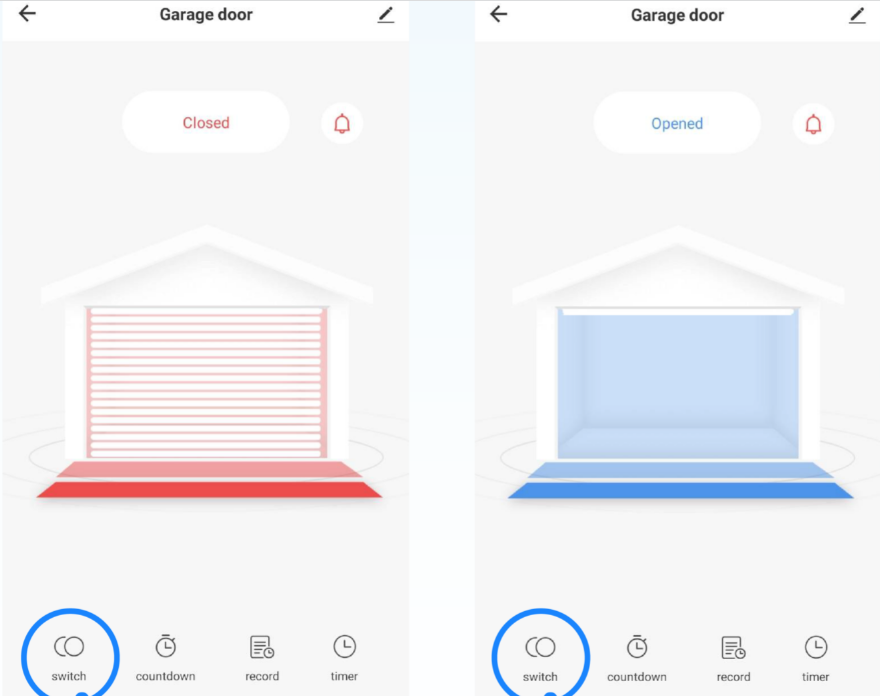

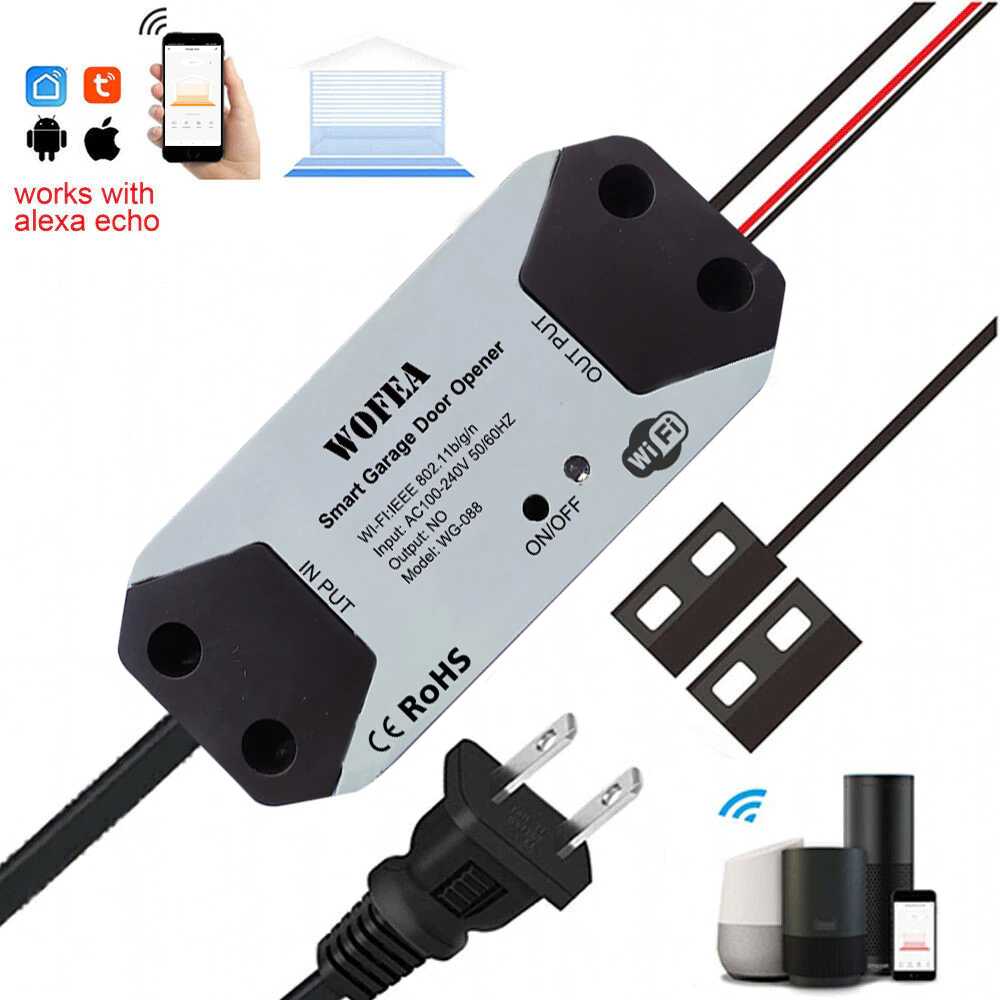

Integrating the garage door opener via smartphone via the Tuya app while maintaining the original control via the floating code remote control. The Tuya application also informs the user about opening the gate with the remote control. The garage door can be opened via the cloud from anywhere via the Internet and you can also receive notifications about the current status of the door. Used CAME SPACE SP2 remotes and ZL-56 CAME control board.

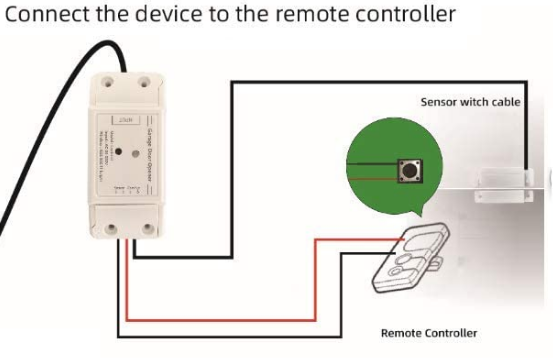

The article also describes the electrical connection and marking of the necessary terminal blocks, where it is possible to connect the gate opening via the Tuya application in parallel. It is also possible to expand the system with a hardware button for opening the gate manually, keeping the two already existing solutions for opening the gate.

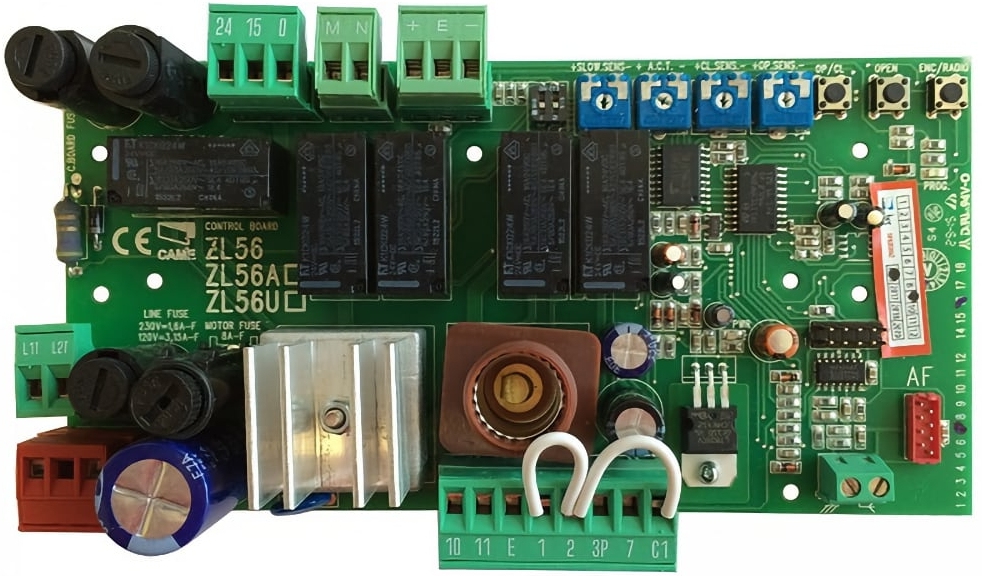

Technical description of the CAME ZL-56 control board:
https://www.allotelecommande.com/wp-content/uploads/2021/03/CAME-3199ZL56.pdf

Instructions for the CAME ZBX-7N control board:
https://www.kovopolotovary.sk/ImgGalery/Img1/FilesPohoda/navod-ridici-jednotky-CAME-ZBX-7N.pdf
